20P Displayport USB Socket Connection Micro USB Socket Female LCP Solder Plating 40V

Name: 20P Displayport USB Socket Connection Micro USB Socket Female LCP Solder Plating 40V
Brand: Jinze
Price: 1 USD

20P Displayport USB Socket Connection Micro USB Socket Female LCP Solder Plating 40V Manufactures

Brand Name : Jinze

Model Number : DP01B-LBA20-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP UL 94 V-0 Black

Gender : Receptacle (Female)

Application : Gaming Consoles/ Automotive Industry/ Electronic Toys

Number of Contacts : 20 Contact

Current Rating : 0.5AMP

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Packaging : Tape&Reel

Contact Now

20P Displayport USB Socket Connection Micro USB Socket Female LCP Solder Plating 1U"

Specifications

Current Rating	0.5A
Voltage Rating	40V
Contact Resistance	40 mΩ Max
Insulation Resistance	Unmated: 100mΩ Min at 500 VDC
Insulation Resistance	Mated: 10mΩ Min at 150 VDC
Dielectric Withstanding Voltage	500 V AC/1 Minute
Durabilty	10000 Cycles
Operation Temperature	-20°C~+85°C
Storage Temperature	-20°C~+65°C

Images

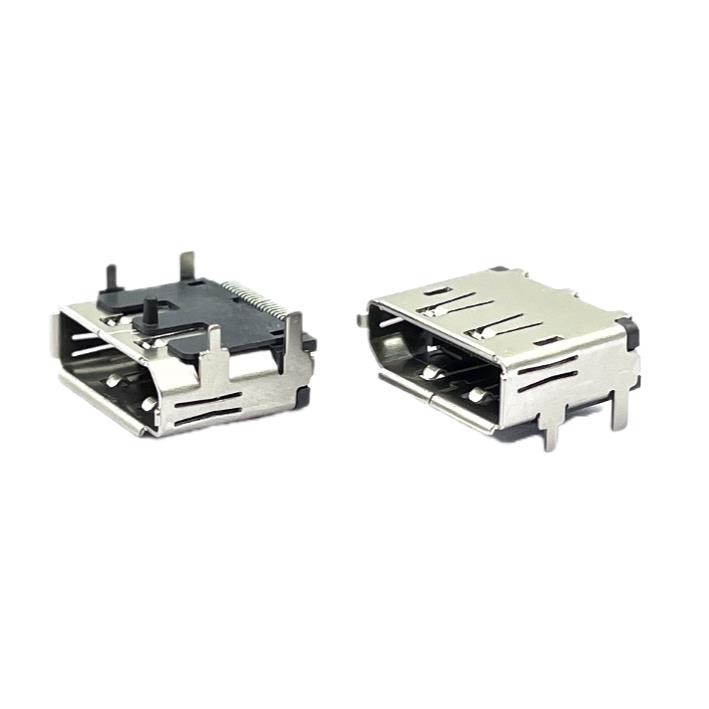

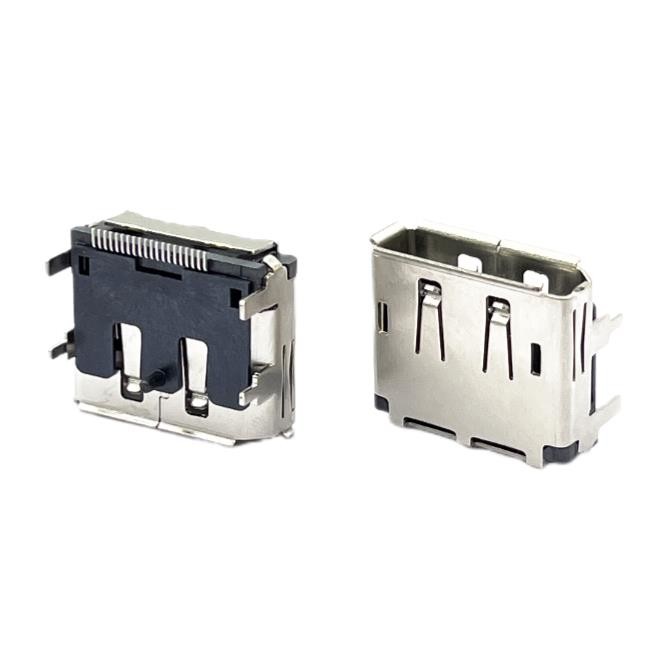

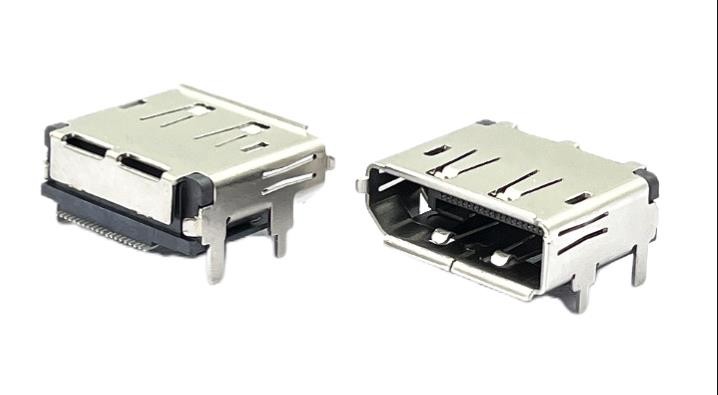

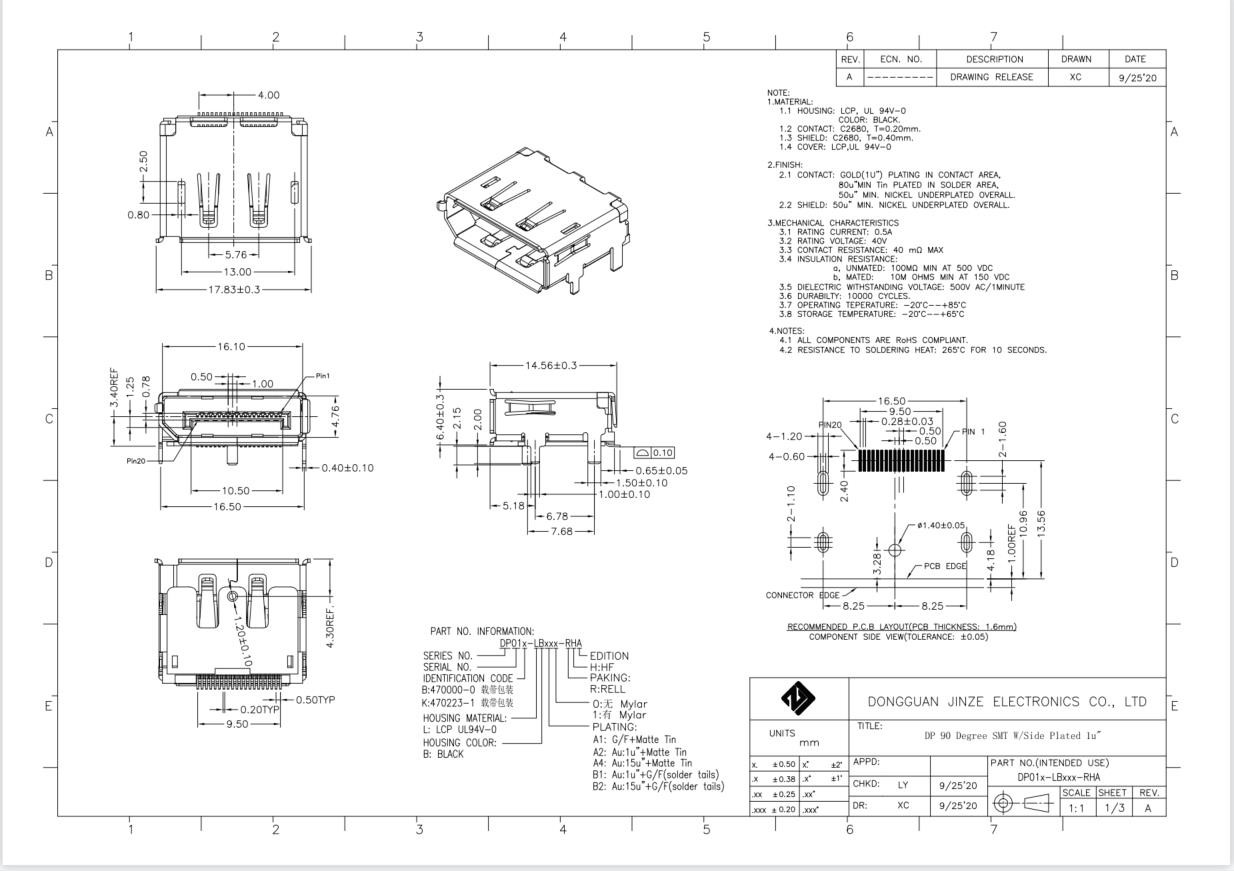

Drawings:

DP01B-LBA20-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
